Cable Lugs

Application

Cable lugs are widely used in electrical installations, power distribution systems, industrial machinery, automotive applications, and many other areas where reliable electrical connections are necessary. They play a crucial role in ensuring proper transmission of power and minimizing electrical resistance or loss.

Introduce

Cable lugs, also known as cable connectors or cable terminals, are devices used to connect electrical cables to various equipment or components. They provide a secure and reliable connection, ensuring proper electrical conductivity and mechanical strength.

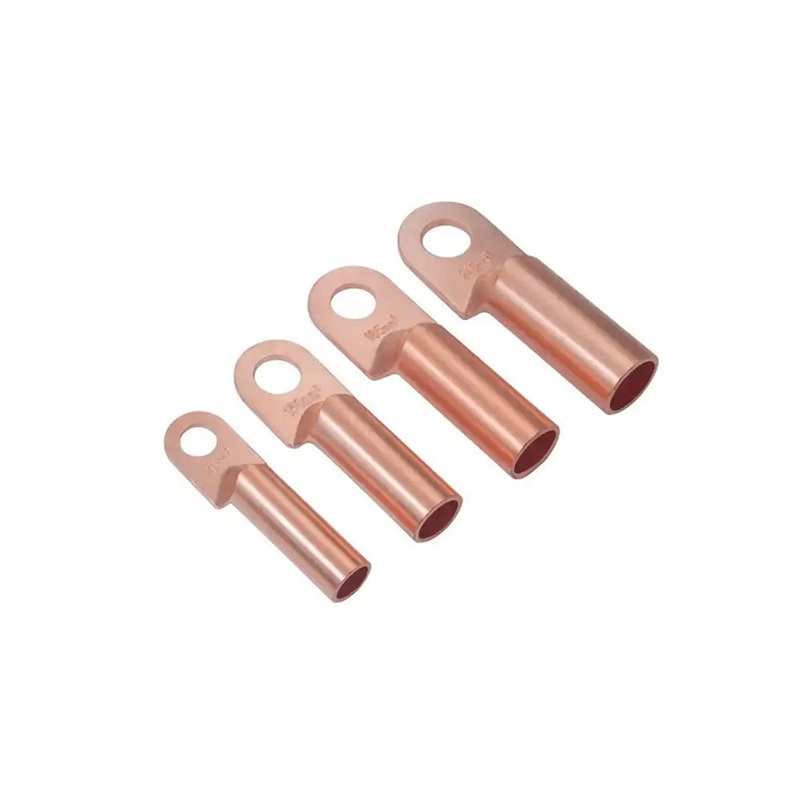

Cable lugs are typically made of conductive materials like copper or aluminum. They are designed to accommodate specific cable sizes and types. The lug is attached to the end of the cable by crimping, soldering, or mechanical methods, depending on the lug design and the application requirements.

Types

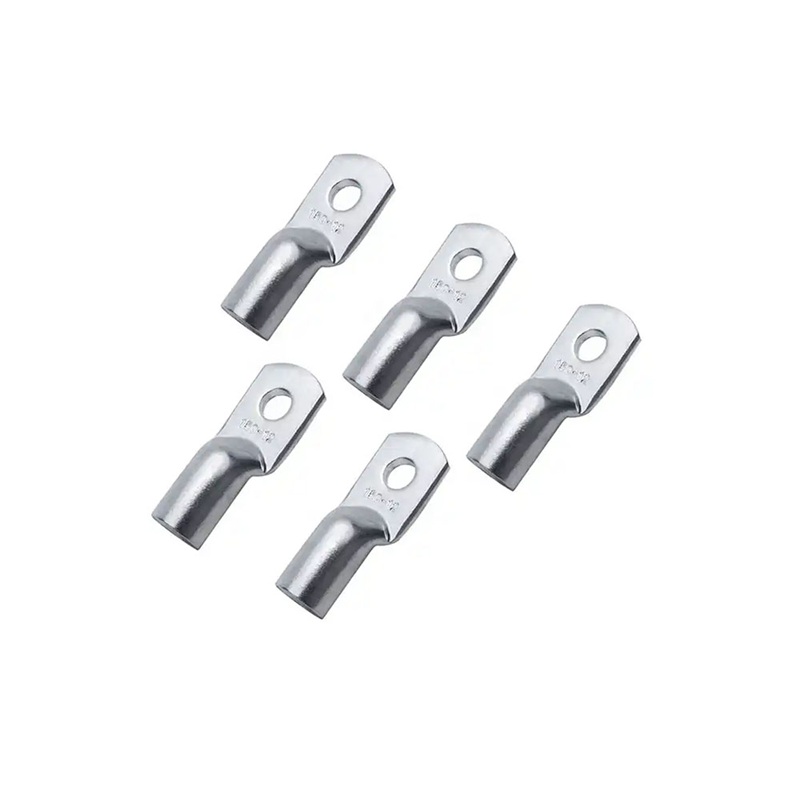

• Ring Lugs: These have a circular shape with a hole in the center, allowing them to be easily bolted or screwed onto terminals or equipment.
• Spade Lugs: These have a flat, spade-like shape with a hole or slot at the end. They are often used when a quick disconnect is required.
• Pin Lugs: These have a cylindrical shape with a hole through the center. They are commonly used in applications where cables need to be connected to studs or posts.
• Butt Connectors: These are used to join two cable ends together. They have a tubular shape and are crimped onto the cables to create a secure connection.
