PVC Insulation Flexible Wire is fit for AC rated voltage 450/750V and below of domestic electrical appliances of smaller size motorized tools of instruments of various meters and motorized lighting installations.
PVC insulation flexible wire is fit for AC rated voltage 450/750V and below of domestic electrical appliances of smaller size motorized tools of instruments of various meters and motorized lighting installations.
Used in appliances, electronics, and consumer products such as refrigerators, air conditioners, televisions, computers, and audio/video equipment for internal wiring and connection of components. Its flexibility allows it to be easily routed and connected in small spaces within appliances and electronic devices.
PVC insulation flexible wire is widely used in commercial buildings for electrical installations such as lighting, power outlets, HVAC systems, and other electrical devices. Its flexibility and ease of installation make it suitable for commercial applications where wiring needs to be routed in conduit, conduit trays, or exposed conduits.
PVC insulation flexible wires are used in automotive applications for wiring of electrical systems in vehicles, including lighting, power distribution, sensors, and controls. Its flexibility and durability make it suitable for the demanding conditions and tight spaces in automotive wiring.
PVC (Polyvinyl Chloride) insulated flexible wire is a type of electrical wire that is commonly used in various applications, including residential, commercial, and industrial settings. It is known for its flexibility, durability, and ease of installation. Here is a general overview of the construction of PVC insulated flexible wire:
The conductor is the heart of the wire and is responsible for carrying the electrical current. It's usually made of copper or aluminum, both of which are good electrical conductors. PVC insulated cords can produce two-core or even multi-core conductor wires according to customer needs.
The conductors are coated with a layer of PVC insulation, which provides electrical insulation to prevent the flow of current to unintended areas and prevent electric shock. PVC insulation is known for its excellent electrical properties, durability, and resistance to moisture, chemicals, and abrasion. A nylon sheath can be added to the outer layer due to the needs of the product's use environment.
PVC insulation flexible wire working temperature:Not more than 105°C for RV-105 model.The other no more than 70°C.
1) If the insulated conductors and complete wires are put into the water at 20+5°C for an hour,they are able to pass the Water Immersion AC Voltage Test as stated.
2) The PVC Insulation Wire has excellent electrical insulation performance and mechnical performance and non-inflammability, so it is safe and convenient to use. The manufacturer’s name, the model and the voltage grade should be clearly and consecutively printed on the surface of the the complete wires.
| Model | Name |
| RV | Copper Core PVC Insulation Flexible Wire |
| RVB | Copper Core PVC Insulation Flat Flexible Wire |
| RVS | Copper Core PVC Insulation Twisted Flexible Wire |
| RVV | Copper Core PVC Insulation Sheath Round Flexible Wire |
| RVVB | Copper Core PVC Insulation Sheath Flat Flexible Wire |
| RV-90 | Copper Core Heat-resistak Losc PVC Flexible Wire |
| Nominal Section (mm2) | Core Structure No./Dia.(mm) | Max Dia.(mm) | Reference Weight(kg/km) |
| 1.5 | 30/0.25 | 3.5 | 21.4 |
| 2.5 | 49/0.25 | 4.2 | 24.5 |
| 4 | 56/0.20 | 4.8 | 51.8 |
| 6 | 84/0.30 | 6.4 | 74.1 |
| 10 | 84/0.30 | 8.0 | 12.4 |
| Nominal Section (mm2) | Core Structure No./Dia.(mm) | Max Dia.(mm) | Reference Weight(kg/km) |
| 2x0.3 | 2x16/0.15 | 3.5 | 21.4 |
| 2x0.4 | 2x23/0.15 | 4.2 | 24.5 |
| 2x0.5 | 2x28/0.15 | 4.8 | 51.8 |
| 2x0.75 | 2x42/0.15 | 6.4 | 74.1 |
| 2x1.0 | 2x32/0.20 | 8.0 | 12.4 |
| Nominal Section (mm2) | Core Structure No./Dia.(mm) | Max Dia.(mm) | Reference Weight(kg/km) |
| 2x0.75 | 2x24/0.20 | 7.6 | 50 |
| 2x1.0 | 2x32/0.20 | 7.8 | 57.8 |
| 2x1.5 | 2x30/0.25 | 8.8 | 74.7 |
| 2x2.5 | 2x49/0.25 | 11.0 | 120 |
| 3x0.75 | 3x24/0.20 | 8.0 | 63.1 |
| 3x1.0 | 3x32/0.20 | 8.4 | 74.0 |
| 3x1.5 | 3x30/0.25 | 9.6 | 102.0 |
| 3x2.5 | 3x49/0.25 | 11.5 | 162.0 |
| 4x0.75 | 4x24/0.20 | 8.6 | 78.5 |
| 4x1.0 | 4x32/0.20 | 9.2 | 97.2 |
| 4x1.5 | 4x30/0.25 | 11.0 | 133.0 |
| 4x2.5 | 4x49/0.25 | 12.5 | 204.0 |
| 5x0.75 | 5x24/0.20 | 9.4 | 96.9 |
| 5x1.0 | 5x32/0.20 | 11.0 | 115 |
| 5x1.5 | 5x30/0.25 | 12.0 | 158 |
| 5x2.5 | 5x49/0.25 | 14.0 | 249 |
| Nominal Section (mm2) | Core Structure No./Dia.(mm) | Max Dia.(mm) | Reference Weight(kg/km) |
| 0.5 | 16/0.2 | 2.4 | 10.2 |
| 0.75 | 24/0.2 | 3.0 | 13.5 |
| 1.0 | 32/0.2 | 3.2 | 16.4 |
| 1.5 | 30/0.25 | 3.5 | 21.4 |
| 2.5 | 49/0.25 | 4.2 | 34.5 |
| 4 | 56/0.30 | 4.8 | 51.8 |
| 6 | 84/0.30 | 6.4 | 74.1 |

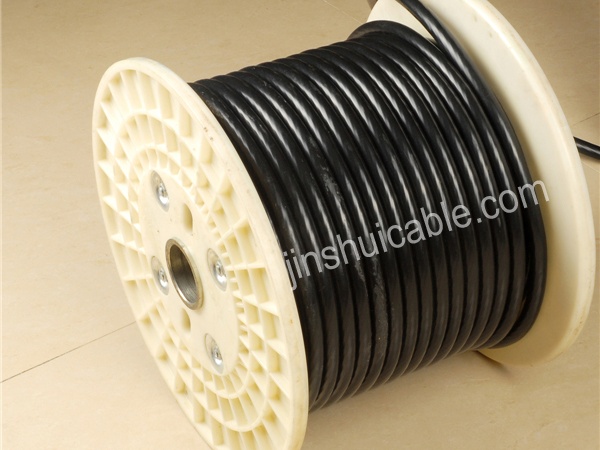

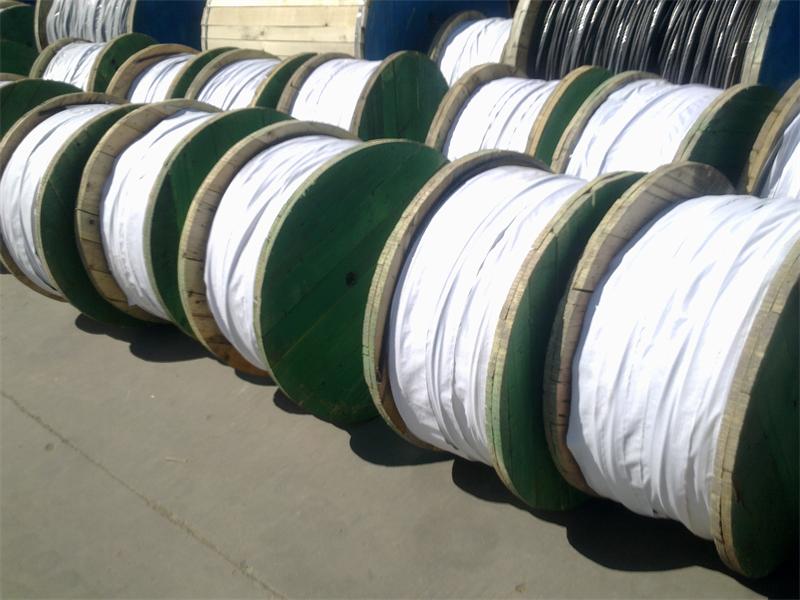

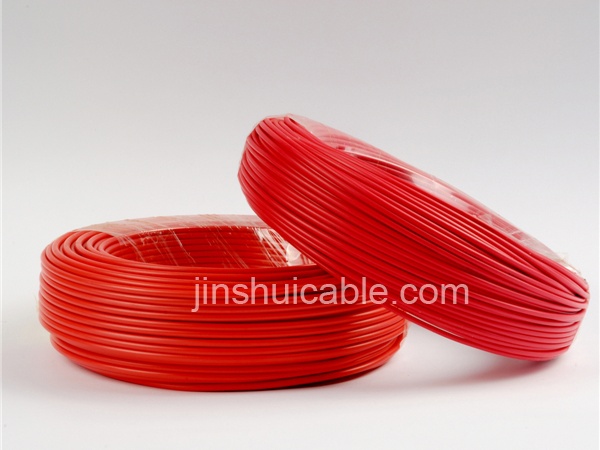

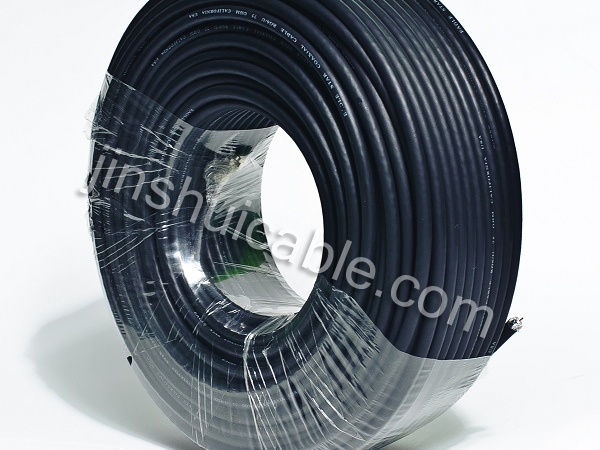

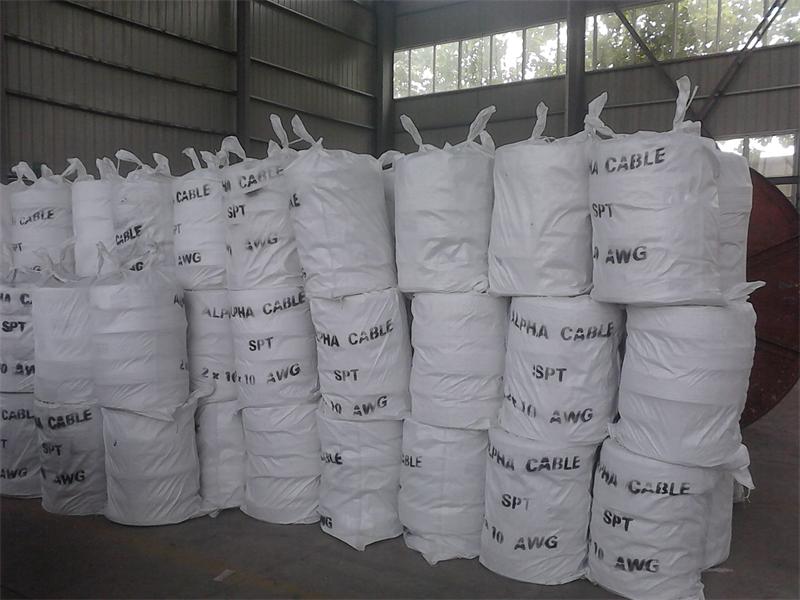

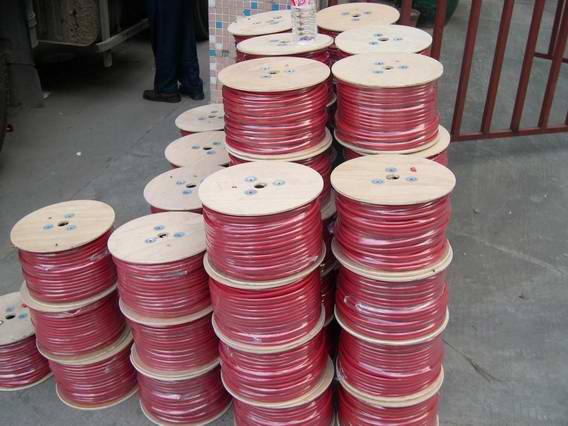

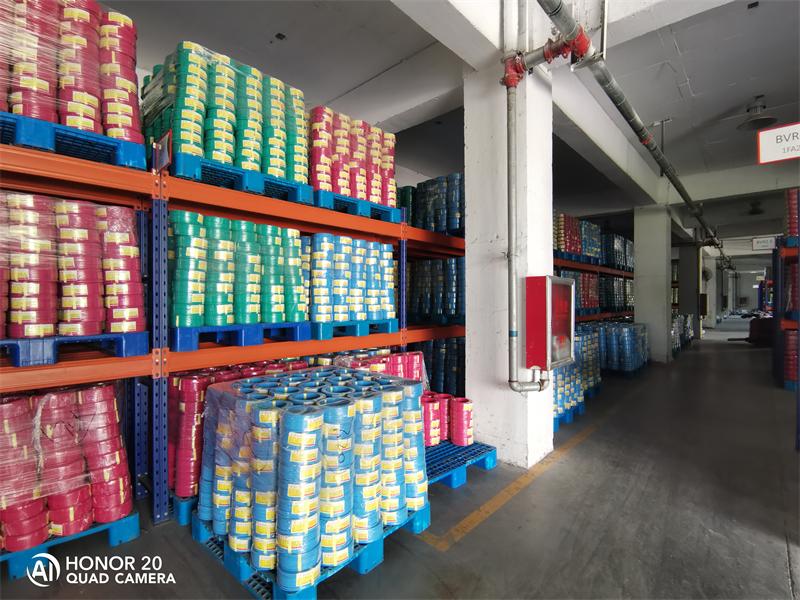

The packaging style of wires and cables including coil packaging, reel packaging, wooden drum packaging and iron-wood drum packaging. Electric pvc wire usually used coil packaging, reel packaging, wooden drum packaging and other packaging style. The packaging style is mainly based on the length and weight of the cables , we customize the satisfactory packaging method based on customers’ needs.
