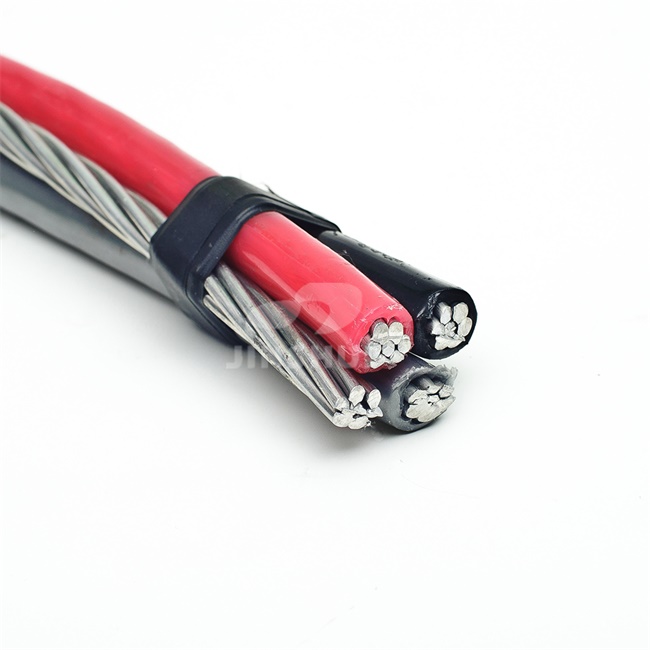

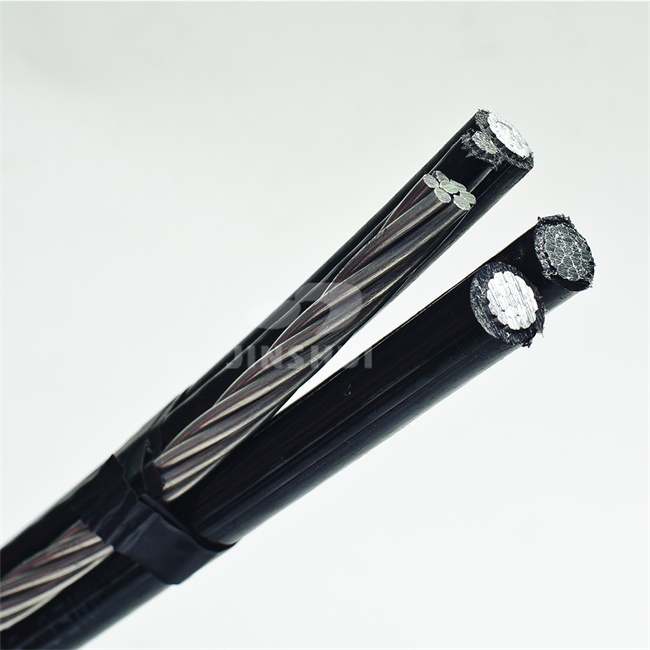

Quadruplex Overhead Aluminum Cable is suitable for AC cables below 10KV, and is mainly used for urban power grid transmission lines, such as street lighting, outdoor lighting, temporary construction services, etc.
Quadruplex overhead aluminum cables are used to provide 3 phase power, usually from a pole mounted transformer to a customer service head, where the service entry cables are connected. Primarily used to transport electricity from overhead distribution systems to residential and commercial buildings. This product is suitable for AC cables below 10KV, and is mainly used for urban power grid transmission lines, such as street lighting, outdoor lighting, temporary construction services, etc. Here are some common applications for quadruplex overhead aluminum cable:
Quadruplex overhead aluminum cable is commonly used to supply power to residential homes in rural or suburban areas. The cable is installed between the utility pole and the weatherhead or meter base on the building, providing a safe and reliable connection to the electrical grid.
Quadruplex overhead aluminum cable is also used to supply power to commercial buildings such as stores, offices, and factories. The cable is installed in a similar manner as in residential applications, providing a cost-effective and efficient solution for power delivery.
Quadruplex overhead aluminum cable is commonly used to supply power to streetlights in residential and commercial areas. The cable is installed between the utility pole and the streetlight, providing a safe and reliable power source for lighting public areas.
Quadruplex overhead aluminum cable is widely used in agricultural applications, providing power to irrigation systems, livestock facilities, and other agricultural operations in rural areas. The cable’s durability and resistance to weather conditions make it ideal for these types of applications.

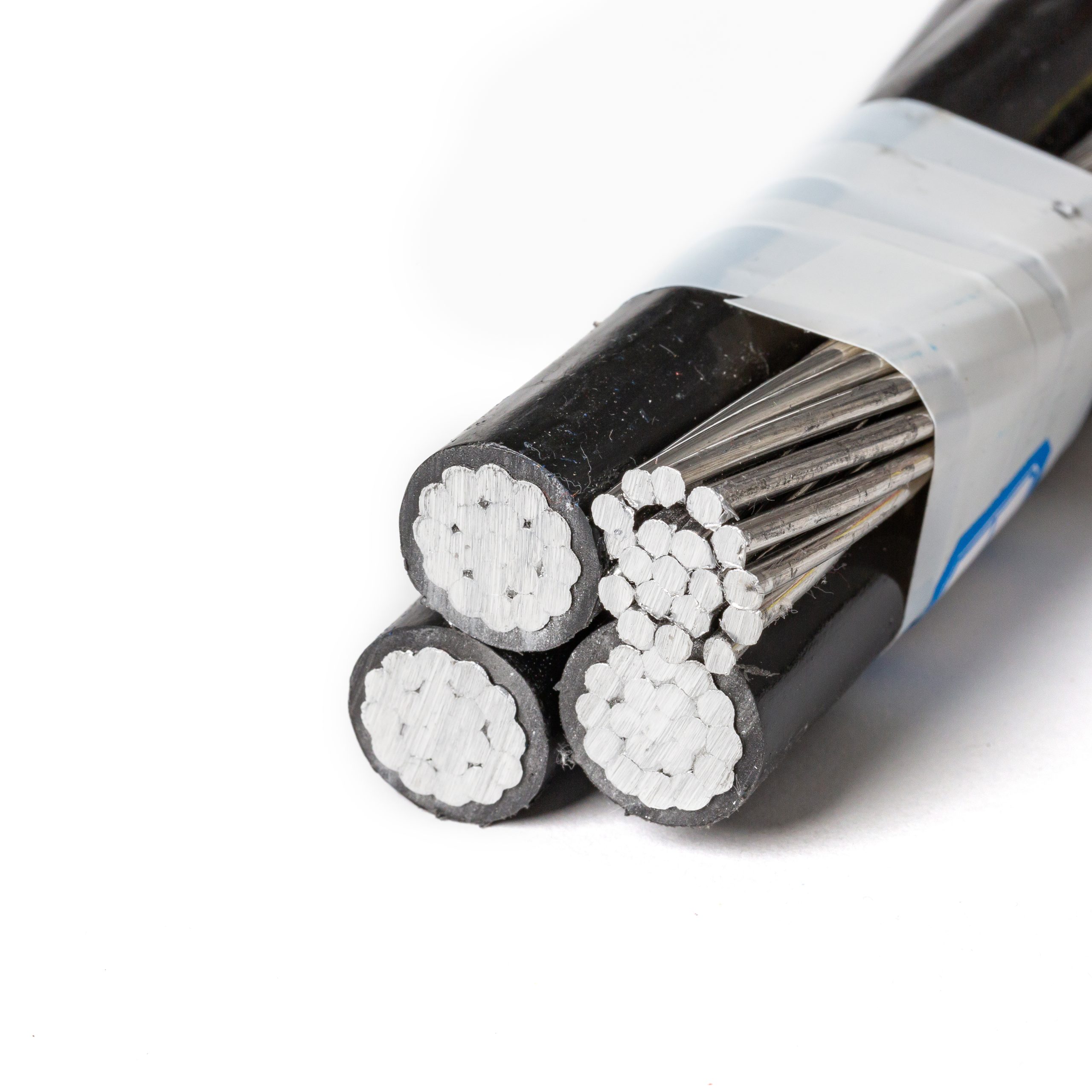

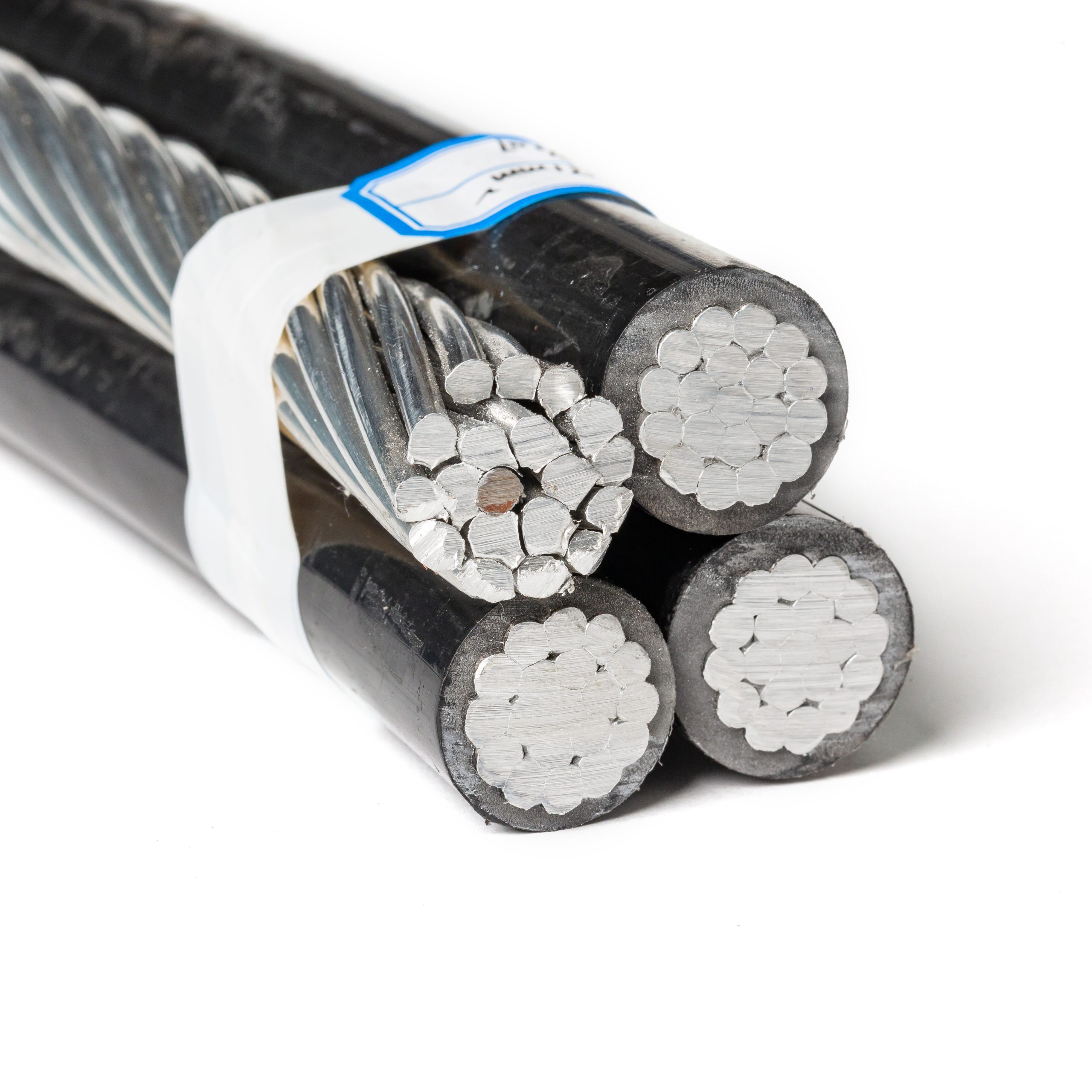

The first step in constructing quadruplex overhead aluminum cables are stranding the individual conductors together. Neutral messengers are concentrically stranded 6201,AAC or ACSR.One conductor is manufactured with an extruded ridge for phase identification.The conductors are twisted together to form a stranded cable, which is stronger and more flexible than a single solid conductor.
The main function of the cable insulation layer is to insulate the conductors in the cable from the surrounding environment or from adjacent conductors. Insulation is usually made of materials such as polyvinyl chloride (PVC), polyethylene (PE) or cross-linked polyethylene (XLPE). And the conductor temperature of PVC insulated conductors does not exceed 75 °C, and the conductor temperature of XLPE insulated conductors does not exceed 90 °C.
Quadruplex service drop cable meets or exceeds the following ASTM specifications;
B-230 Aluminum Wire,1350-H19 for electrical Purposes.
B-231 Aluminum conductors,Concentric-Lay-Stranded.
B-232 Aluminum conductors,Concentric-Lay-Stranded,Coated Steel Reinforced(ACSR).
B-399 Concentric-Lay-Stranded,6210-T81-Aluminum
Service Drop cable meets or exceeds all applicable requirements of ICEA-S-76-474
NOTE:Designated sizes are:ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTM B-399 for 6201.
| Code Name | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft(lbs) | Rating(Amps) | ||||||
| Size AWG | Strand | Insulation Thickness(mls) | Size AWG | Strand | Breaking Strength(lbs) | XLPE | Poly | XLPE | Poly | |
| AAC NEUTRAL-MESSENGER | ||||||||||
| Mustang | 2 | 7/w | 45 | 2 | 7 | 1,350 | 333 | 312.6 | 135 | 105 |
| Criollo | 1/0 | 19/w | 60 | 1/0 | 7 | 1,990 | 529 | 504.5 | 180 | 140 |
| Percheron | 2/0 | 19/w | 60 | 2/0 | 7 | 2,510 | 649 | 620.5 | 205 | 160 |
| Hanoverian | 3/0 | 19/w | 60 | 3/0 | 19 | 3,310 | 799 | 765.6 | 235 | 185 |
| Oldenburg | 4/0 | 19/w | 60 | 4/0 | 19 | 4,020 | 986 | 946.7 | 275 | 210 |
| Lippizaner | 336.4 | 19/w | 80 | 336.4 | 19 | 6,146 | 1,546 | 1,519.2 | 370 | 280 |
| ACSR NEUTRAL-MESSENGER | ||||||||||
| Morochuca | 6 | Solid | 45 | 6 | 6/1 | 1,190 | 152 | 147.4 | 75 | 60 |
| Chola | 6 | 7/w | 45 | 6 | 6/1 | 1,190 | 162 | 151.7 | 75 | 60 |
| Morgan | 4 | Solid | 45 | 4 | 6/1 | 1,860 | 226 | 220 | 100 | 80 |
| Hackney | 4 | 7/w | 45 | 4 | 6/1 | 1,860 | 241 | 226.1 | 100 | 80 |
| Palomino | 2 | 7/w | 45 | 2 | 6/1 | 2,850 | 362 | 342.6 | 135 | 105 |
| Costena | 1/0 | 19/w | 60 | 1/0 | 6/1 | 4,380 | 575 | 550.6 | 180 | 140 |
| Grullo | 2/0 | 19/w | 60 | 2/0 | 6/1 | 5,310 | 707 | 678.7 | 205 | 160 |
| Suffolk | 3/0 | 19/w | 60 | 3/0 | 6/1 | 6,620 | 872 | 838.9 | 235 | 185 |
| Appaloosa | 4/0 | 19/w | 60 | 4/0 | 6/1 | 8,350 | 1,079 | 1,039.2 | 275 | 210 |
| Bronco | 336.4 | 19/w | 80 | 336.4 | 18/1 | 8,580 | 1,613 | 1,568.2 | 370 | 280 |
| Gelding | 336.4 | 19/w | 80 | 4/0 | 6/1 | 8,350 | 1,548 | 1,494.3 | 370 | 280 |
| AAAC NEUTRAL-MESSENGER | ||||||||||
| Code Name | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft(lbs) | Rating(Amps) | ||||||
| Size AWG | Strand | Insulation Thickness(mls) | Size AWG | Strand | Breaking Strength(lbs) | XLPE | Poly | XLPE | Poly | |
| Bay | 6 | Solid | 45 | 6 | 7 | 1,110 | 145 | 140.0 | 75 | 60 |
| French Coach | 6 | 7/w | 45 | 6 | 7 | 1,110 | 155 | 144.3 | 75 | 60 |
| German Coach | 4 | Solid | 45 | 4 | 7 | 1,760 | 214 | 208.3 | 100 | 80 |
| Arabian | 4 | 7/w | 45 | 4 | 7 | 1,760 | 229 | 214.4 | 100 | 80 |
| Belgian | 2 | 7/w | 45 | 2 | 7 | 2,800 | 344 | 323.1 | 135 | 105 |
| Shetland | 1/0 | 19/w | 60 | 1/0 | 7 | 4,460 | 546 | 521.1 | 180 | 140 |
| Thoroughbred | 2/0 | 19/w | 60 | 2/0 | 7 | 5,390 | 670 | 641.5 | 205 | 160 |
| Trotter | 3/0 | 19/w | 60 | 3/0 | 7 | 6,790 | 825 | 791.8 | 235 | 185 |
| Walking | 4/0 | 19/w | 60 | 4/0 | 7 | 8,560 | 1,019 | 979.7 | 275 | 210 |
The packaging style of wires and cables including coil packaging, reel packaging, wooden drum packaging and iron-wood drum packaging, usually overhead insulated cables used reel packaging, wooden drum packaging and iron-wood pallet packaging. The packaging style is mainly based on the length and weight of the cables , we customize the satisfactory packaging method based on customers’ needs.
