Rubber sheathed cable insulation layer and sheath are often made of natural rubber, styrene-butadiene rubber, ethylene-propylene rubber, etc. In addition to satisfying insulation properties and physical and mechanical properties, it also requires aging resistance and abrasion resistance. Some products require oil resistance and flame retardancy.
Rubber sheathed cable insulation layer and sheath are often made of natural rubber, styrene-butadiene rubber, ethylene-propylene rubber, etc. In addition to satisfying insulation properties and physical and mechanical properties, it also requires aging resistance and abrasion resistance. Some products require oil resistance and flame retardancy. Rubber insulated cable with rated voltage up to 450/750V is in accordance with the standard GB5013-1997(IEC245-1994). The long-time permissible working temperature of conductor is 60°C. It is widely used for external small electrical equipment, agricultural electrification, building elevators, and gantries. The following are the applications of light, medium and heavy rubber sheathed cables in life:
General light rubber sheathed cable have the characteristics of softness, lightness and good bending performance, and are mainly suitable for household appliances and small electric equipment.
The voltage level of medium and heavy-duty mobile general-purpose rubber sheathed cable can generally reach 380v, and it is mainly used in industrial electrical equipment and agricultural electrification.
Heavy-duty rubber sheathed cables are used in port machinery, searchlights, and large-scale hydraulic irrigation and drainage stations for family businesses. These products have good versatility, complete specifications and models, and good and stable performance.
The products are mainly complying with iec 60502 standard, also can be produced according to OEM requirements and other standards, such as bs standard, din standard, ASTM standard, etc. rated voltage:300/300v, 300/500v, 450/750v and up to 35Kv. cross-section area can be up to 400 sqmm (copper or aluminiun conductor).
Rubber sheathed Cable Long term permissible working temperature is 65°C. Insulated resistance constant of finished products ki(at 20°C):the coefficient are not less than 734MΩ;Except electrical driller cables,must be conformed to GB/T3956-1997 the stipulation of 5th kind flexible copper conductors.
(1)The long-time working temperature of conductor of PVC insulated cable is 70oC
The long-time working temperature of conductor of XLPE insulated cable is 90oC
(2)The temperature for laying the cables can not be lower than 0oC.Permissible bending radius(r):unarmoured cable:r≥6D;(D: outer diameter of the cable);armoured or copper-tape screened cable:r≥12D;shielded flexible cable:r≥6D
| Type | Rated voltage kV | Core number x cross sections mm2 |
| UC(P)-0.38/0.66 | 0.3//0.66 | 3x16+1x4+3x2.5 3x35+1x6+4x4 |

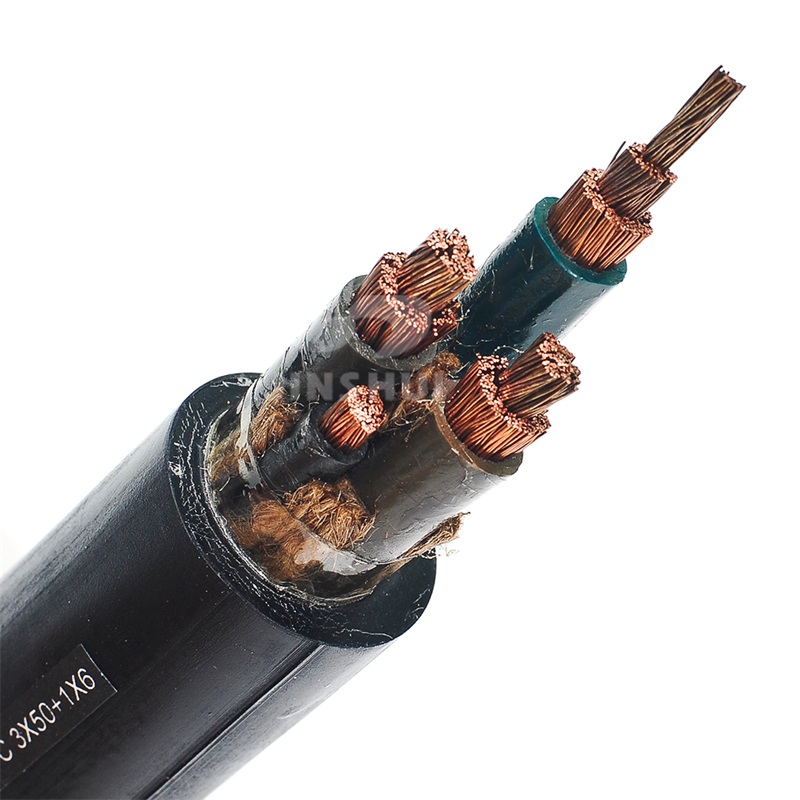

| MC(P)-0.38/0.66 | 3x25+1x6+4x2.5 3x50+1x6+4x4 | |
| UZ(P)-0.38/0.5 | 0.3/0.5 | 3x2.5+1x2.5 3x4+1x4 |
| MY(P)-0.3/0.5 | 3x2.5+1x2.5+1x2.5 3x4+1x4+1x4 | |
| 0.38/0.66 | 3x4+1x4 3x25+1x16 | |

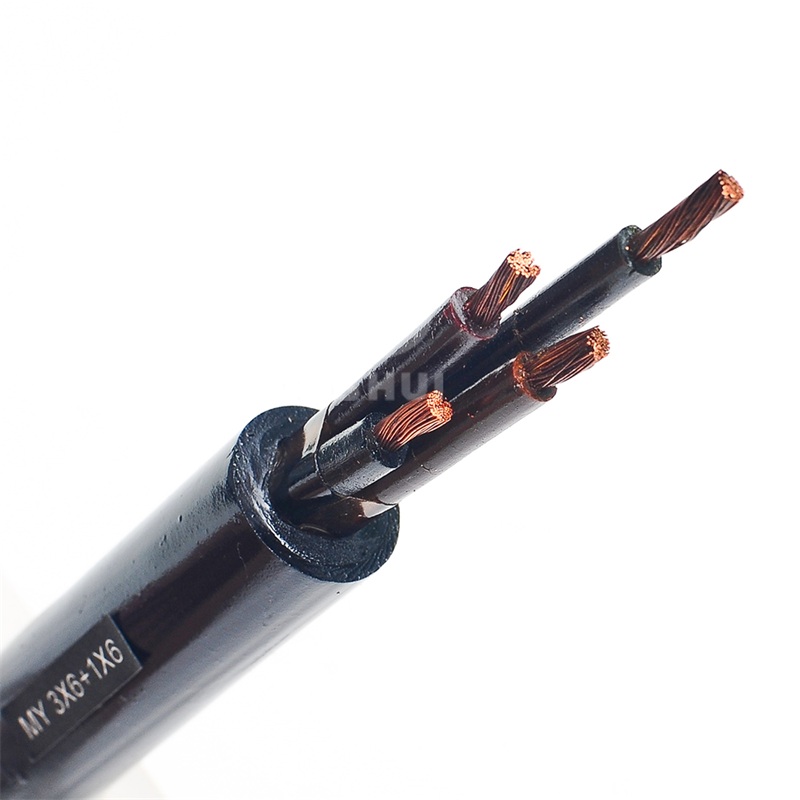

| UY(P)-0.38/0.66 | 3x6+1x6 3x35+1x16 | |
| MY(P)-0.38/0.66 | 3x10+1x10 3x50+1x16 | |
| 3x16+1x10 3x70+1x25 | ||
| UYQ-0.3/0.5 | 0.3/0.5 | 2x1.0 2x1.5 2x2.5 7x1.0 7x1.5 |
| MYQ-0.3/0.5 | 3x1.0 3x1.5 3x2.5 7x2.5 12x1.0 | |
| 4x1.0 4x1.5 4x2.5 12x1.5 12x2.5 |
The packaging style of wires and cables including coil packaging, reel packaging, wooden drum packaging and iron-wood drum packaging, usually control cable used reel packaging, wooden drum packaging and other packaging style.The packaging style is mainly based on the length and weight of the cables , we customize the satisfactory packaging method based on customers’ needs.
